GARLAND BULL 1482 NRQG-V20

Name: GARLAND BULL 1482 NRQG-V20
SKU: 63G-0064
Price: 777 EUR

Motoazada de gasolina - Motor 4 T de 223 cc y 95 kg de peso. 8 Grupos de fresas de 35 cm por fresa. Ancho de trabajo 100 cm. Ruedas neumáticas, transmisión directa con embrague multidisco y 2 marchas adelante y 1 hacia atrás.

Ref. 63G-0064

777,00 €

Add

Technical Specifications

Engine Type.	Garland 4 T
Cylinder capacity (cc)	223
EURO standard	Euro V
Electronic ignition (Yes/No)	Si
Start (Manual/Electric)	Manual
View All

Description
Features
Documentation

Motoazada with 4T gasoline engine with "OHV" head valves, 223 cc, with a very stable slowdown to less revolutions, less noisy and more efficient than 2t engines.

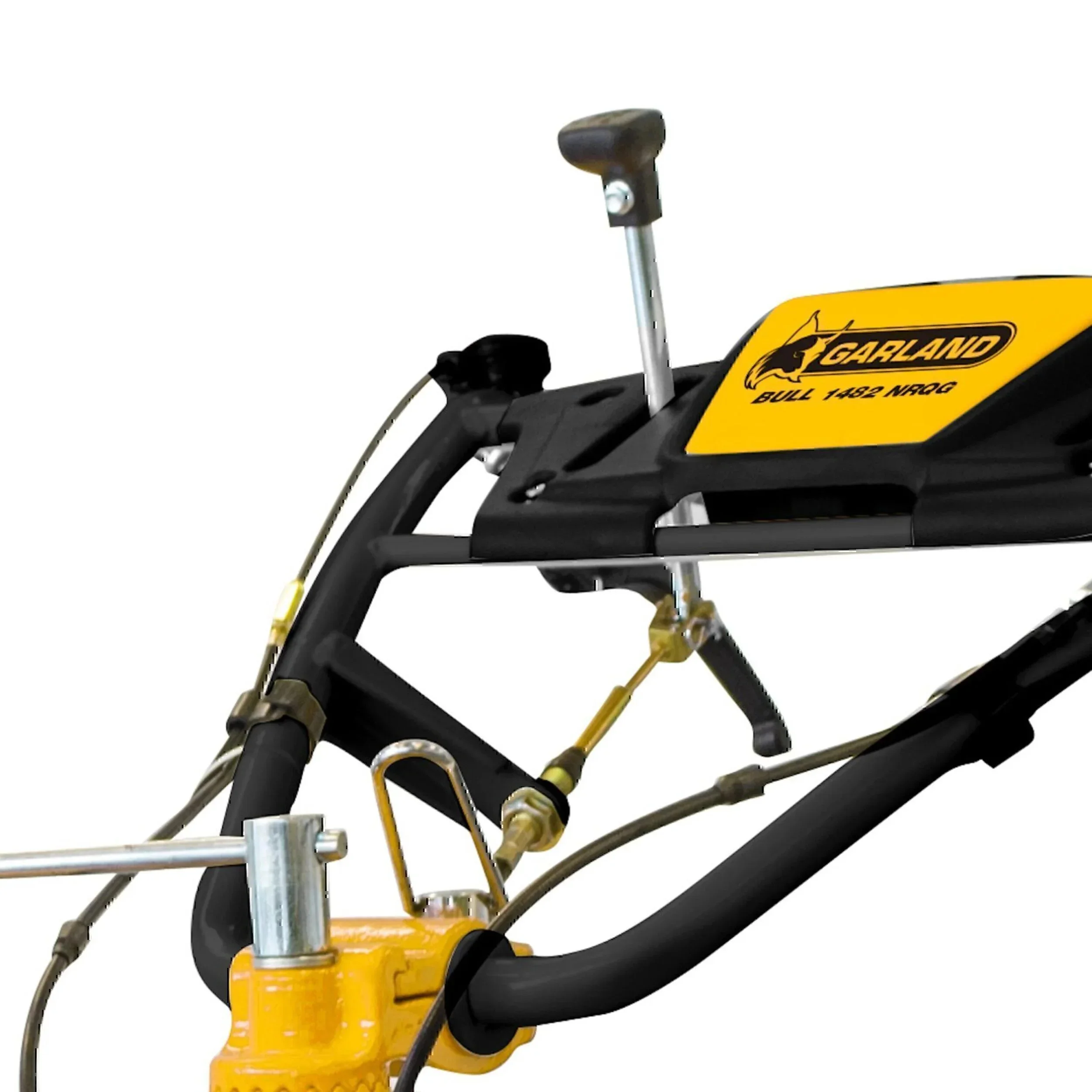

Equipa adjustable handlebar at the side angle and height, totally adaptable to the needs of the operator, as well as adjustable shot in 8 positions, which facilitates the guided.

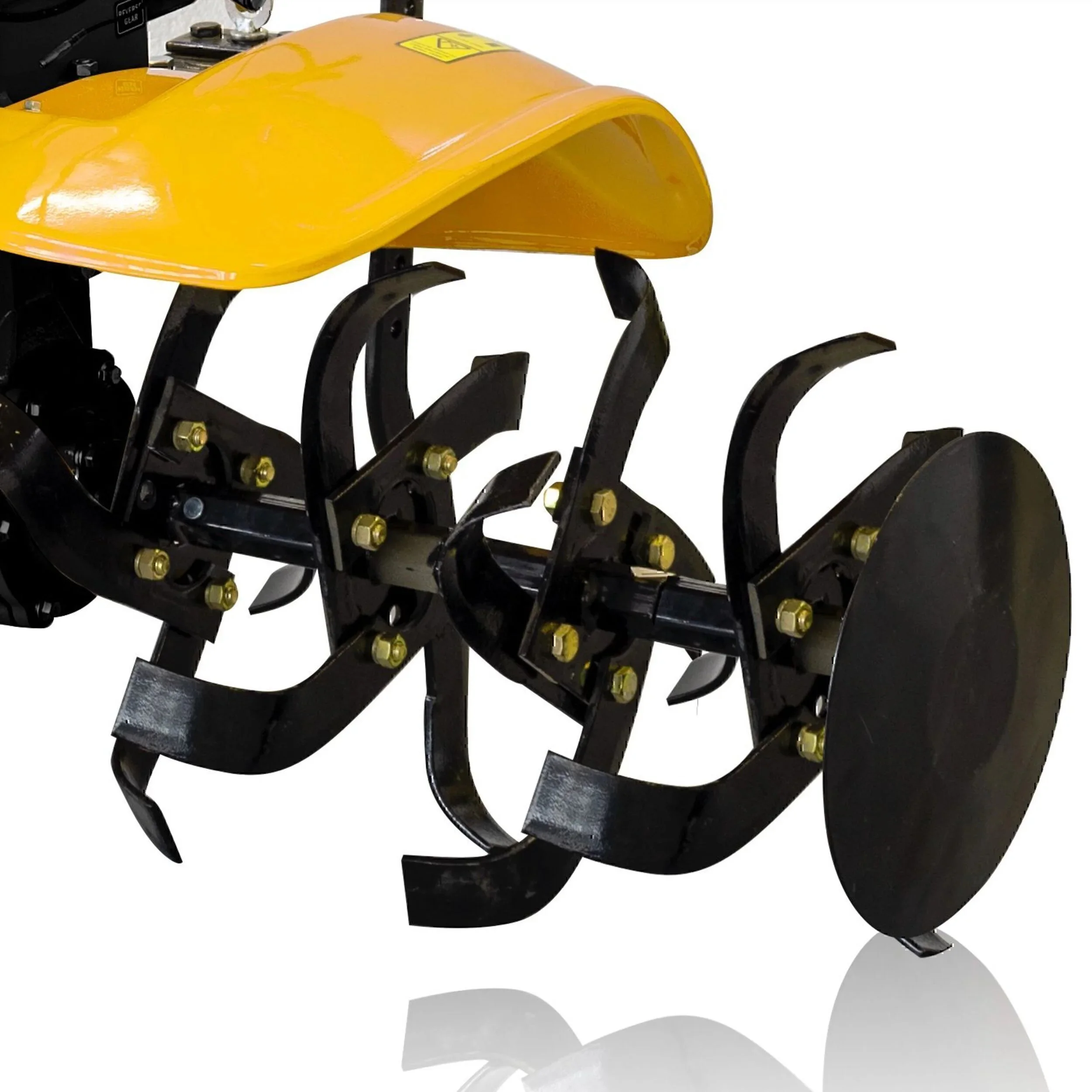

Mounted 8 groups of 35 cm diameter strawberries with 25 mm hexagonal axis, much more resistant, 6x40mm blades, with protective dishes, and a working width of 117 cm. In addition, it includes pneumatic wheels.

Direct transmission in casting box, more efficient and resistant. Multidisk clutch in oil bath, soft and durable, and secondary transmission also founding with oil bath gears, with 2 speeds ahead and 1 back.

Its scamoteable transport wheel and pneumatic wheels make its transfer much easier. It has two supports to install the strawberries and not have to load with them while the pneumatic wheels are used.

Engine Type.	Garland 4 T
Cylinder capacity (cc)	223
EURO standard	Euro V
Electronic ignition (Yes/No)	Si
Start (Manual/Electric)	Manual
Fuel type (s/p 95 + oil 2%)	Gasolina 95
Filter type (ELEVATED / DRY…)	En aceite
Power (kW)	5,5
Power (hp)	7,4
Maximum engine revolutions min-1	3800
Torque (Nm)	14,5
Consumption (kg/kWh)	0,353
Autonomy (min)	75,71
Transport wheel (Yes/No)	Si
Clutch type (belt tensioner/discs)	Multidisco en aceite
Transmission (rigid/flexible/belt/direct)	Directa
Handlebar type.	Regulable altura y lateral.
Folding handlebar without tools (Yes/No)	Si
Protect plants (Yes/No)	Si
Working width (mm)	1000
Blade dimensions (mm)	6x40 (sección)
Rotor diameter (mm)	350
Vibration level (medium)	7,2
Sound pressure (dB (A))	87,4
Sound power (dB (A)) (guaranteed/measured)	106
Number of cutter groups / blades	8
Fuel dep. vol. (l)	3,6
Oil crankcase vol. (l)	0,6
Type of engine oil	10W-40
Transmission oil vol. (l)	2
Transmission oil type	SAE 80W-90
Wheel/blade diameter (mm)	350
Speeds (number of d + number of a)	2+1
Standard accessory	Incluye ruedas neumáticas.
Empty machine weight (kg)	85
Length in use (cm)	156
Width in use (cm)	73
Height in use (cm)	120
Packaging weight (kg)	95
Packaging length (cm)	44
Packaging width (cm)	66
High packaging (cm)	98

Manual	View file
Ficha técnica	View file
